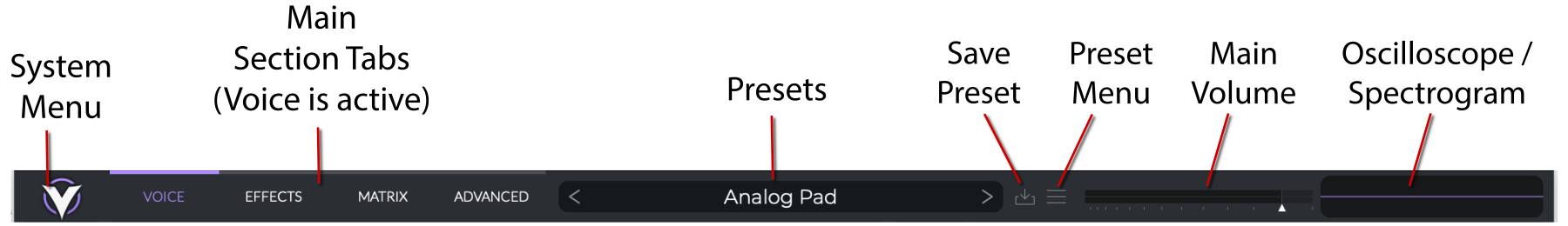

V03: Header bar

Retained analysis

The header distinguishes preset selection, Save, preset menu, master volume and visualizer. A complete instrument is saved here; wavetable editing/export is a different state scope. Keep output level separate from oscillator drive into FX.

Documentation and visible configuration; not a new native audio test. Project observations are distinct from the source author's claims.
