V14: Oscillator

Retained analysis

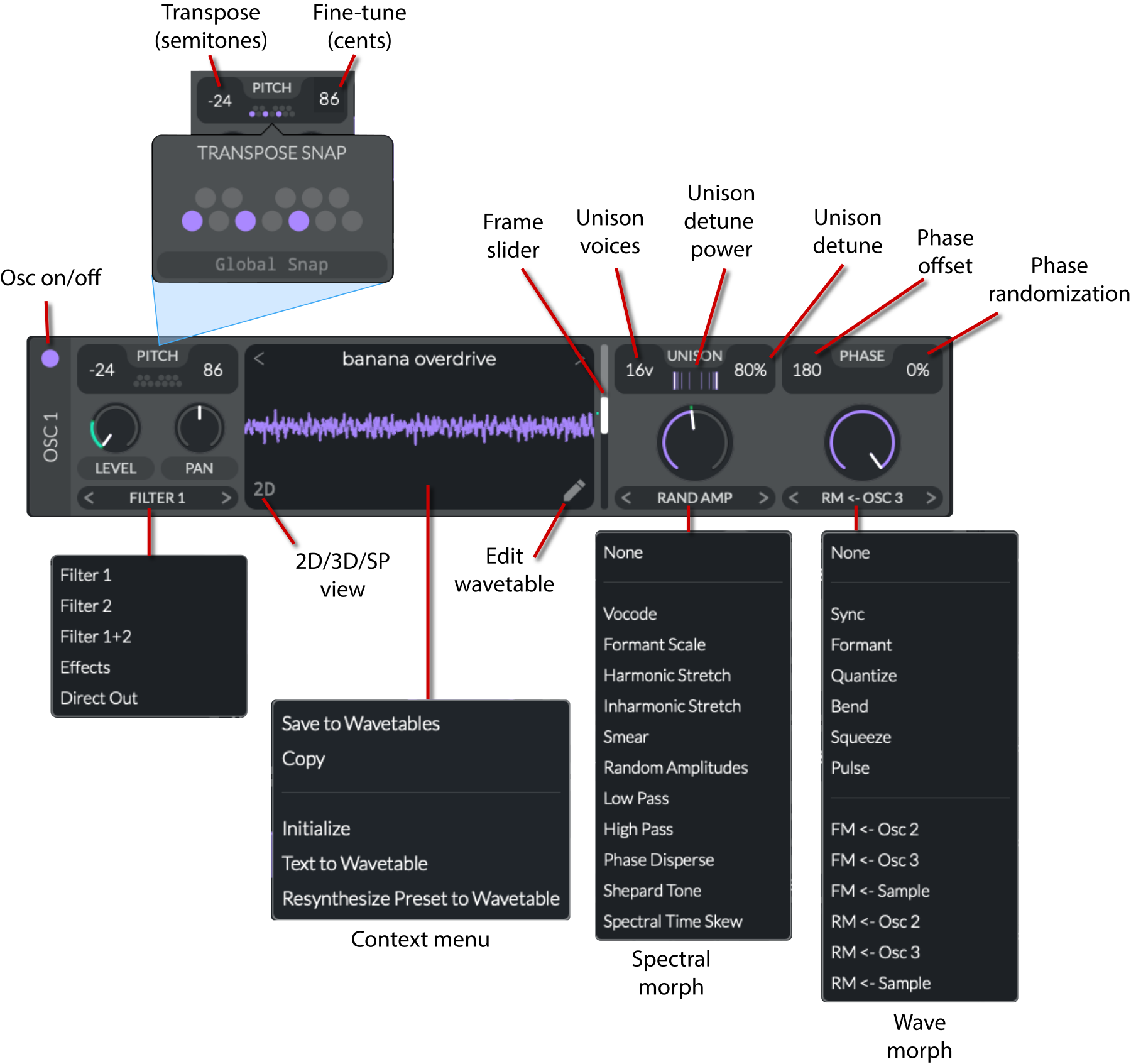

The oscillator diagram separately labels unison count, detune power/distribution, amount, phase and randomization. Spectral modes include Vocode, Formant Scale, harmonic/inharmonic stretch, Smear, random amplitudes, LP/HP, phase dispersion, Shepard Tone and spectral time skew. Wave modes include Sync, Formant, Quantize, Bend, Squeeze, Pulse and FM/RM from other oscillators or Sample. These can operate on simple resources and be modulated independently; direct output and separate filter destinations are visible alternatives to a duplicated L/R construction.

Documentation and visible configuration; not a new native audio test. Project observations are distinct from the source author's claims.
