V19: Wave Sources

Retained analysis

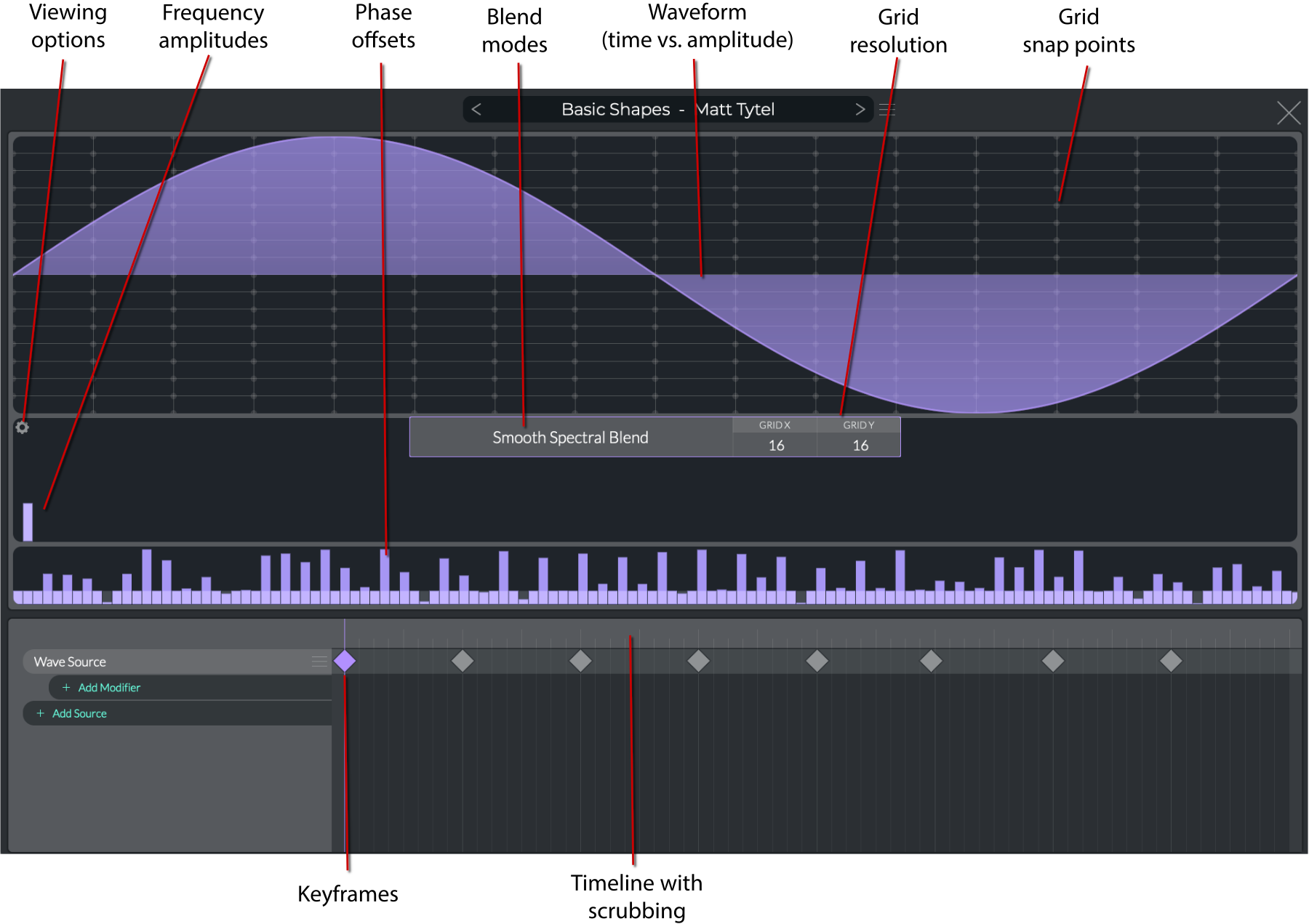

The waveform editor exposes amplitude and phase bars separately, grid resolution, snap points and Smooth Spectral Blend. A sinusoidal waveform can coexist with phase-bar values for bins whose amplitudes are absent; phase bars alone do not prove audible harmonics. Retain amplitude, phase and interpolation choices.

Documentation and visible configuration; not a new native audio test. Project observations are distinct from the source author's claims.
