V21: Bar Editors

Retained analysis

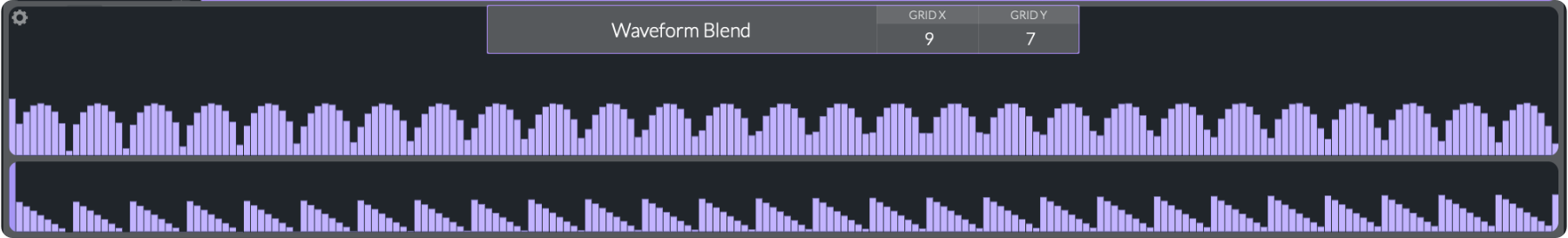

The two bar editors display independently patterned harmonic magnitudes and phase offsets. Additive content and phase structure can therefore be authored separately. Preserve both when extracting or editing a resource instead of assuming a spectral magnitude match uniquely determines the waveform.

Documentation and visible configuration; not a new native audio test. Project observations are distinct from the source author's claims.

Provenance

{
  "id": "V21",
  "source_sha256": "35dbe816e98d221fe7700c86b8502901cd743c51c1d665141d285b517a57d32f",
  "render_sha256": "8e3e9a3965a8bafe70bda493d3eed2dccd68626d6a08f4c8e3adf045b6d1b58d",
  "original_sha256": "11485f15d66b5933a8095293343e990abe8580c61b73b3b1af381dd997f5b4ca"
}
