V52: EQ effect

Retained analysis

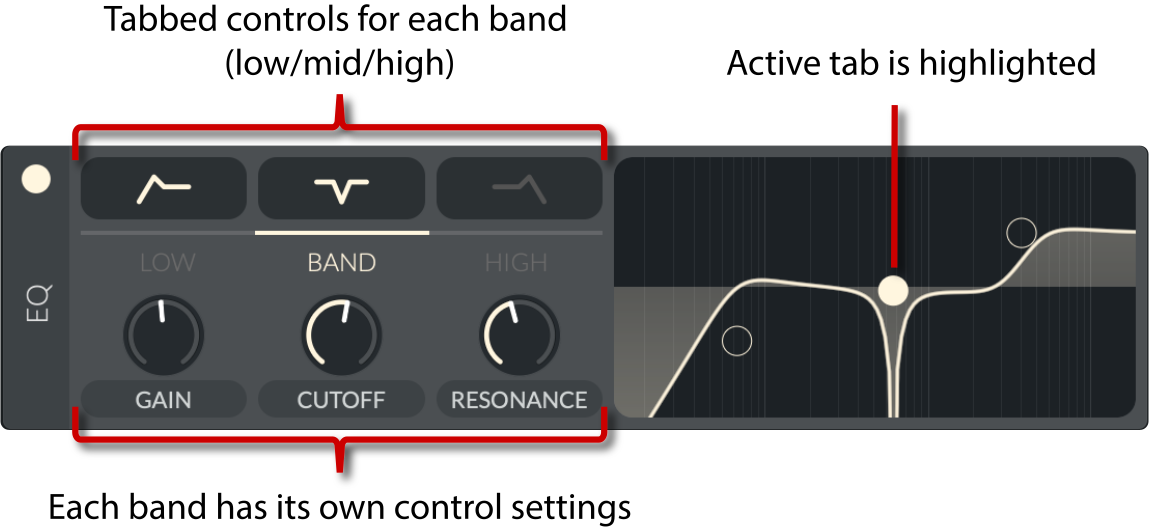

EQ shows three independently configured tabs and multiple graph handles. The example combines low cut, mid notch and high shelf. Each band's gain/cutoff/ resonance and mode survive tab changes; the visible selected band is not the whole EQ. This is a compact way to keep global spectral shaping editable.

Documentation and visible configuration; not a new native audio test. Project observations are distinct from the source author's claims.
