V56: Reverb effect

Retained analysis

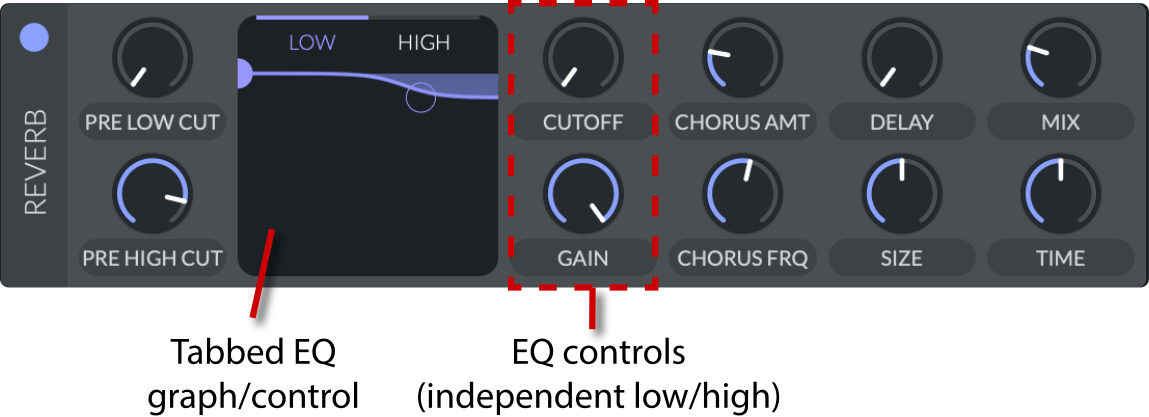

Reverb separates pre-low/high cuts, independent low/high EQ tabs, chorus amount/rate, delay, size, time and mix. This supports frequency-dependent tail behavior and internal modulation. Use the source-backed feedback-EQ placement when modeling decay; the diagram's generic EQ label alone does not establish an external post-reverb EQ topology.

Documentation and visible configuration; not a new native audio test. Project observations are distinct from the source author's claims.
