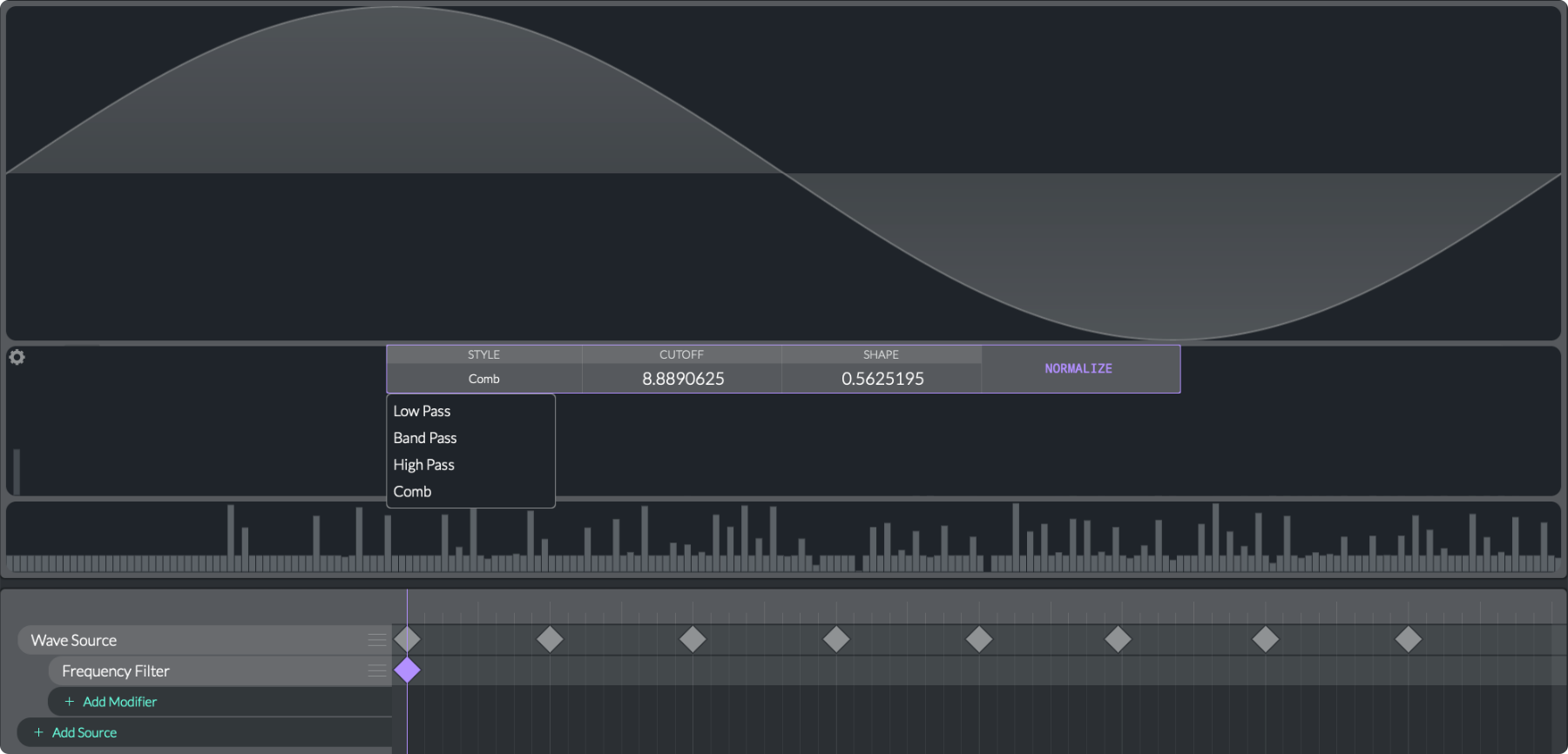

V31: Frequency Filter Modifier

V31: Frequency Filter Modifier
Frequency filter​

Retained analysis

Frequency Filter offers LP/BP/HP/Comb, cutoff, shape and Normalize on a modifier lane. A filter can be baked into table frames or remain a runtime control, with different musical consequences. This editor cutoff is harmonic-index based in the existing implementation notes; do not substitute it for absolute-Hz cutoff.

Documentation and visible configuration; not a new native audio test. Project observations are distinct from the source author's claims.

Provenance

{
  "id": "V31",
  "source_sha256": "35dbe816e98d221fe7700c86b8502901cd743c51c1d665141d285b517a57d32f",
  "render_sha256": "4c6321141669f1a32345f1cee4bb7adf37483399168595b904a1958695531759",
  "original_sha256": "fdc8e73b0e3b91780ccffb2156cd4d5294d75f9faf0d58e9ee2be3ca30ead93d"
}
