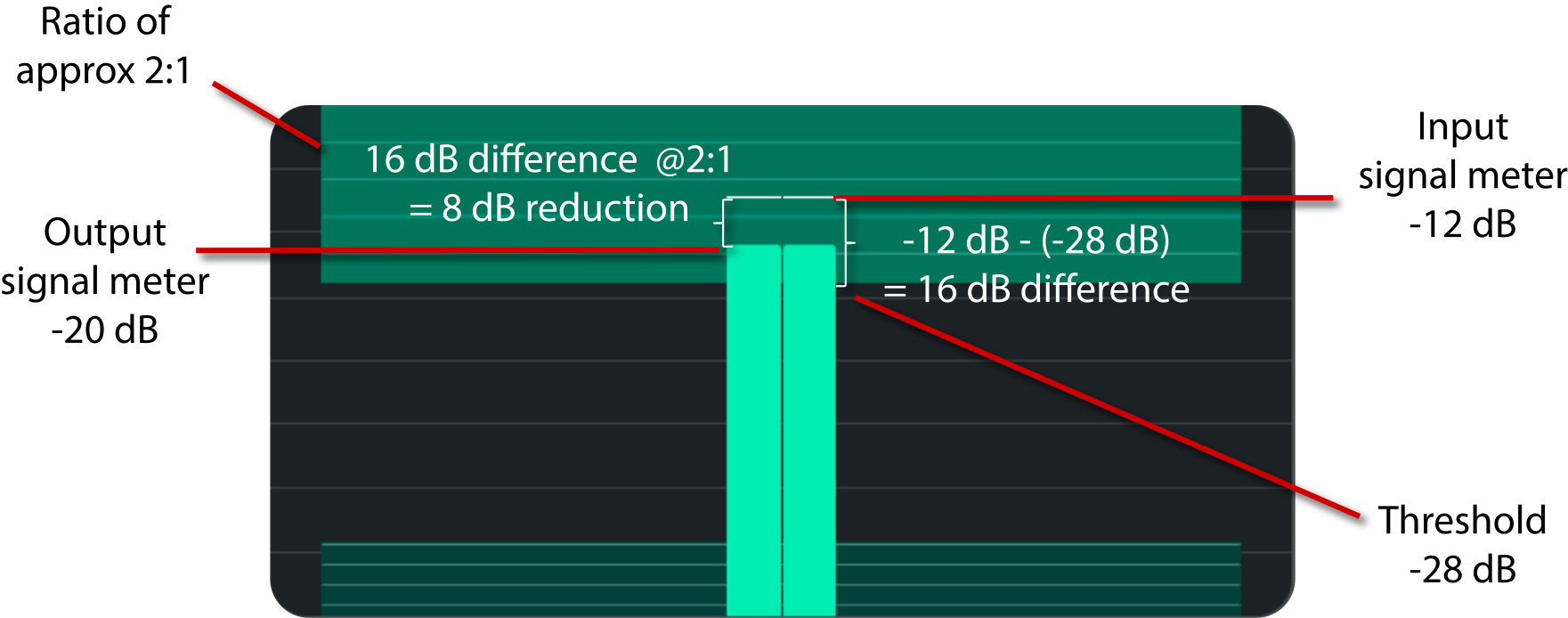

V49: Downward compression example

Retained analysis

The downward example maps input -12 dB above threshold -28 dB at approximately 2:1 to output -20 dB. Together with V48 this distinguishes upper and lower threshold action. Real transients also depend on detector history and timing; these static examples do not specify the entire dynamic response.

Documentation and visible configuration; not a new native audio test. Project observations are distinct from the source author's claims.
