V50: Delay effect

V50: Delay effect
Delay​

Retained analysis

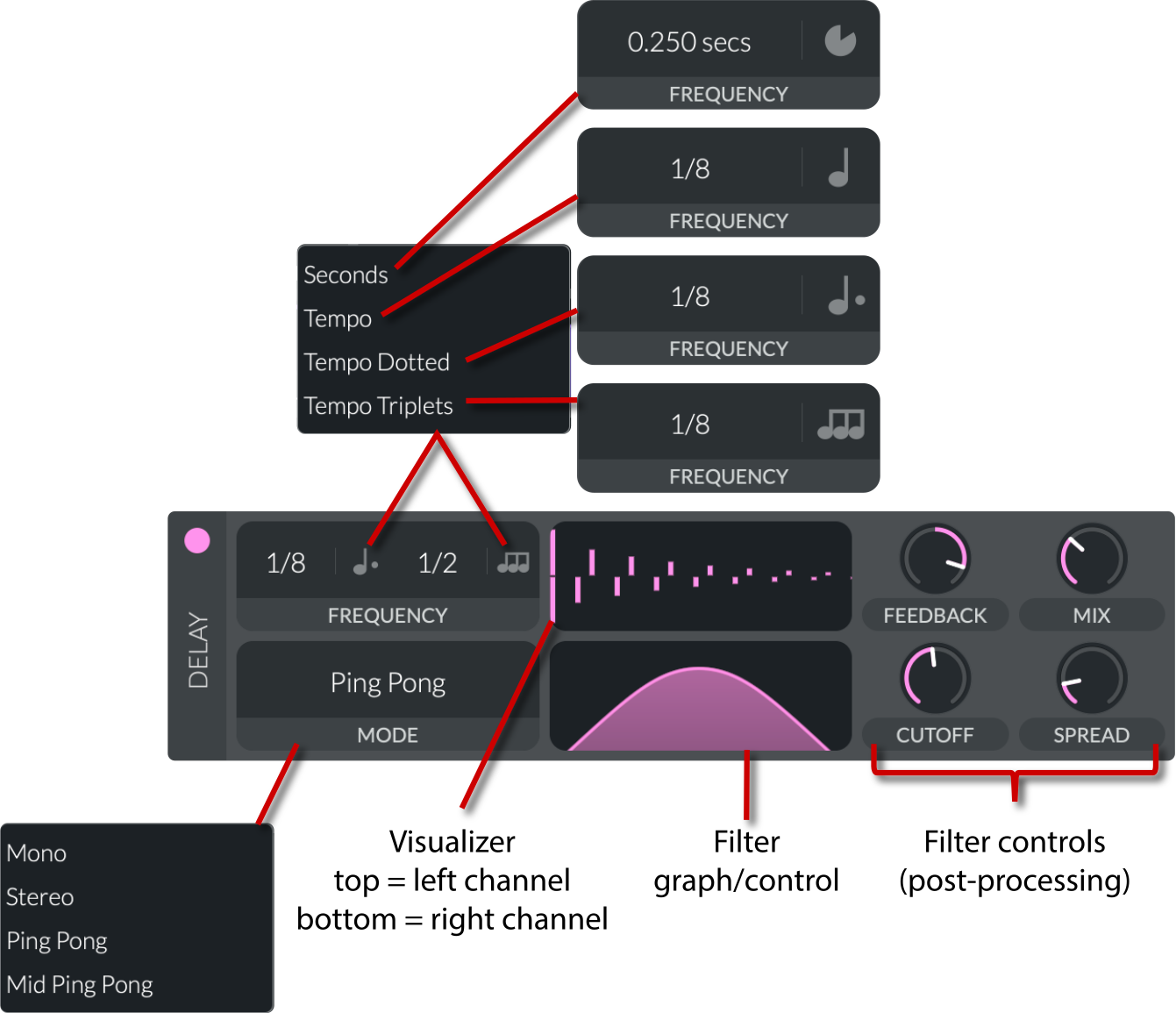

Delay offers Mono, Stereo, Ping Pong and Mid Ping Pong, two time controls and seconds/tempo subdivisions. The visualization explicitly separates L/R repeat positions. Cutoff/spread shape the delayed path. Preserve timing and routing so echo structure is not mistaken for extra notes, release or oscillator width.

Documentation and visible configuration; not a new native audio test. Project observations are distinct from the source author's claims.
